Parts List – E Series

Model E-20

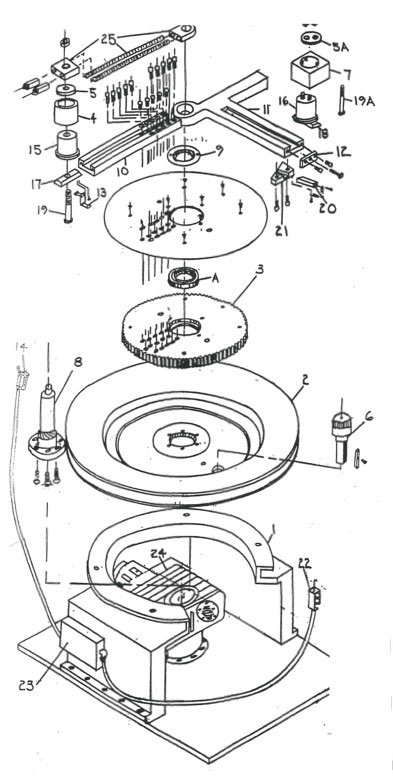

Parts List for E Series Machines
  1. Stand
  2. Housing
  3. Bull Gear
  4. Roller
  5. Roller Cap
    5A. Stop Block Cap
  6. Pinion Assembly
  7. Stop Block
  8. Spindle
  9. Nut
  10. Bending Arm
  11. Stop Arm
  12. End Plates (2)
  13. Tripper
  14. Limit Switch & Bracket (3)
  15. Roller Stud
  16. Stop Block Stud
  17. Roller Slide
  18. Stop Block Slide
  19. Roller Stud Bolt
    19A. Stop Block Stud Bolt (2)
  20. Latch Pin
  21. Latch Plate
  22. Push Button Station
  23. Magnetic Starter
  24. Motor
  25. Link Assembly
    A. Bearing for Part 8
    A. Thrust Bearing Assembly
