Parts List – D Series

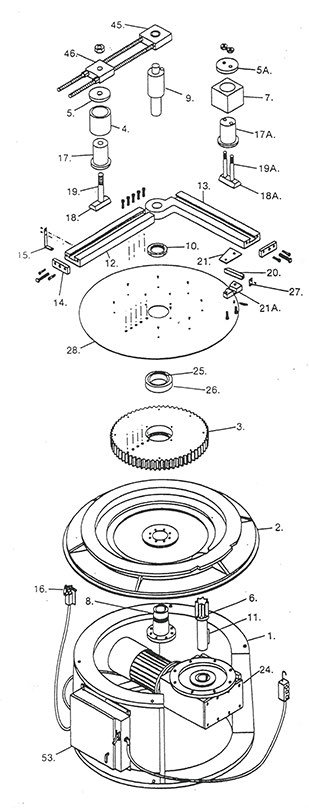

Model D-10

Parts List for D-10 Series Machine
  1. Stand
  2. Housing
  3. Bull Gear
  4. Roller
  5. Roller Cap
    5A. Stop Block Cap
  6. Pinion
  7. Stop Block
  8. Spindle
  9. Spindle Extension
  10. Nut
  11. Key
  12. Bending Arm
  13. Stop Arm
  14. End Plate (2)
  15. Tripper
  16. Bracket
  17. Roller Stud
    17A. Stop Block Stud
  18. Roller Slide
    18A. Stop Block Slide
  19. Roller Stud Bolt
    19A. Stop Block Stud Bolt
  20. Latch Pin
  21. Latch Plate
    21A. Latch Block

24. Gear Motor Drive
25. Roller Brg. Cone
26. Roller Brg. Cup
27. Latch Pin
28. Coverplate
45. Link Head
46. Link Saddle
53. Control Box

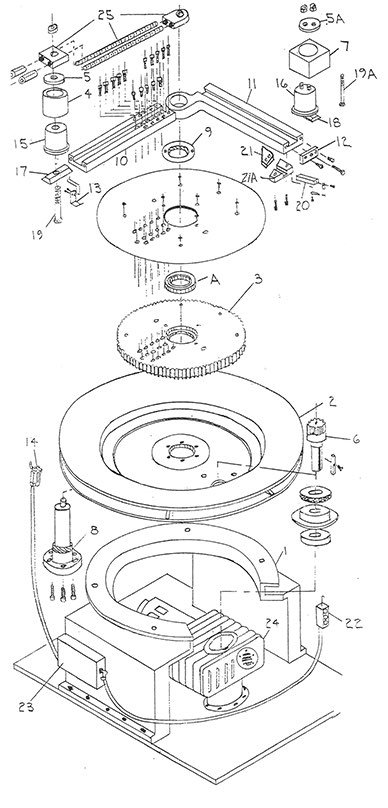

Model D-15

Parts List for D-15 Series Machine
  1. Stand
  2. Housing
  3. Bull Gear
  4. Roller
  5. Roller Cap
    5A. Stop Block Cap
  6. Pinion Assembly
  7. Stop Block
  8. Spindle
  9. Nut
  10. Bending Arm
  11. Stop Arm
  12. End Plates (2)
  13. Tripper
  14. Limit Switch & Bracket (3)
  15. Roller Stud
  16. Stop Block Stud
  17. Roller Slide
  18. Stop Block Slide
  19. Roller Stud Bolt
    19A. Stop Block Stud Bolt (2)
  20. Latch Pin
  21. Latch Plate
  22. Push Button Station
  23. Magnetic Starter
  24. Motor
  25. Link Assembly
    A. Bearing for Part 8

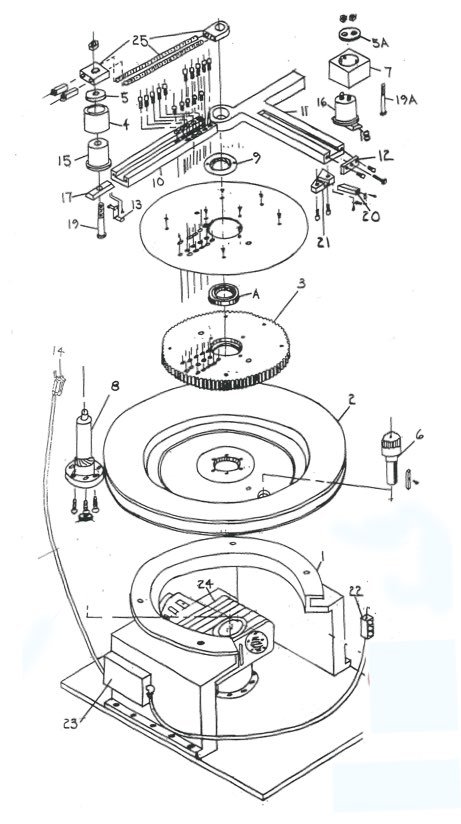

Model D-20

Parts List for D-20 Series Machine
  1. Stand
  2. Housing
  3. Bull Gear
  4. Roller
  5. Roller Cap
    5A. Stop Block Cap
  6. Pinion Assembly
  7. Stop Block
  8. Spindle
  9. Nut
  10. Bending Arm
  11. Stop Arm
  12. End Plates (2)
  13. Tripper
  14. Limit Switch & Bracket (3)
  15. Roller Stud
  16. Stop Block Stud
  17. Roller Slide
  18. Stop Block Slide
  19. Roller Stud Bolt
    19A. Stop Block Stud Bolt (2)
  20. Latch Pin
  21. Latch Plate
  22. Push Button Station
  23. Magnetic Starter
  24. Motor
  25. Link Assembly
    A. Bearing for Part 8
    B. Thrust Bearing Assembly
