Parts List – B Series

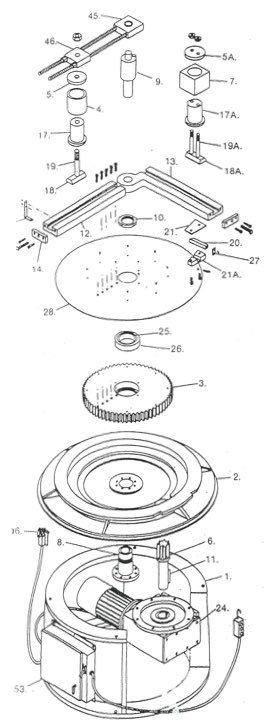

List of Machine Parts with Diagram

Parts List for B Series Machines
  1. Stand
  2. Housing
  3. Bull Gear
  4. Roller
  5. Roller Cap
    5A. Stop Block Cap
  6. Pinion
  7. Stop Block
  8. Spindle
  9. Spindle Extension
  10. Nut
  11. Key
  12. Bending Arm
  13. Stop Arm
  14. End Plate (2)
  15. Tripper
  16. Bracket
  17. Roller Stud
    17A. Stop Block Stud
  18. Roller Slide
    18A. Stop Block Slide
  19. Roller Stud Bolt
    19A. Stop Block Stud Bolt
  20. Latch Pin
  21. Latch Plate
    21A. Latch Block
  22. Gear Motor Drive
  23. Roller Brg. Cone
  24. Roller Brg. Cup
  25. Latch Pin
  26. Coverplate

45. Link Head
46. Link Saddle
53. Control Box
