Parts List – A Series

A-Series Parts List: A-3, A-5, A-7

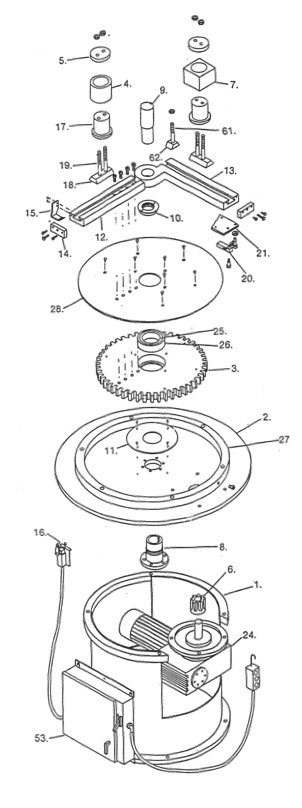

Parts List for A Series Machines
  1. Stand
  2. Housing
  3. Bull Gear
  4. Roller
  5. Cap
  6. Pinion
  7. Stop Block
  8. Spindle
  9. Spindle Extension
  10. Nut
  11. Brass Plate
  12. Bending Arm
  13. Stop Arm
  14. End Plates (2)
  15. Tripper
  16. Brackets (3)
  17. Studs (2)
  18. Slides (2)
  19. Stud Bolts (4)
  20. Latch Pin
  21. Latch Plate
  22. Gear Motor Drive
  23. Roller Brg. Cone
  24. Roller Brg. Cup
  25. Housing Ring
  26. Coverplate

53. Control Box
61. Short Slide Bolt
62. Short Slide



Parts List A-1

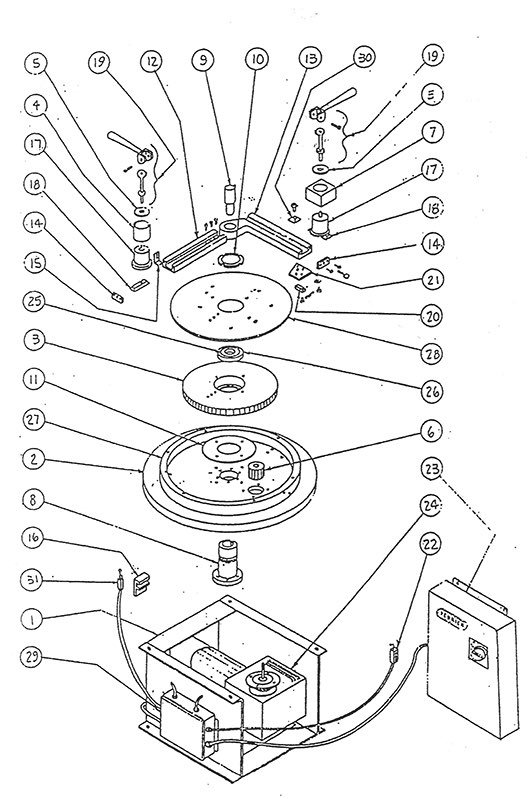

Parts List for A-12 Bender Machine
Part No. Description DWG. No.
1 Stand B-0244
2 Housing C-0021
3 Bullgear B-0245
4 Roller A-1199
5 Cap A-1200
6 Pinion A-1201
7 Stop Block A-1202
8 Spindle B-0230
9 Spindle Extension A-1203
10 Nut A-1204
11 Bronze Plate A-1205
12 Bending Arm B-0241
13 Stop Arm B-0241
14 End Plate A-1206
15 Tripper A-1207
16 Limit Switch Bracket A-1208
17 Stud A-1209
18 Slide A-1210
19 Cam Locking Assembly B-0248
20 Latch Pin A-1211
21 Latch Plate A-1212
22 Push Button Station
23 Reversing Controller
24 Gear Motor COMM
25 Bear Cone COMM
26 Bearing Cup COMM
27 Housing Ring B-0246
28 Cover Plate B-0247
29 Junction Box
30 Short Slide A-1213
31 Limit Switch E-50SA CH
